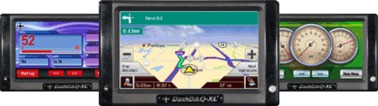

Zeitronix DashDAQ Series II XL Display - Full color, OBDII compatible Touch Screen Display for the Zt-2 Wideband AFR Meter

Zeitronix-DashDAQ display is Preconfigured for easy Plug and Play use with the Zt-2
Display and data log AFR, RPM, EGT, Vacuum/Boost, TPS, and configurable User Inputs from the Zt-2
Run a Dual Zt-2 configuration for left and right cylinder bank AFR values!
Up to 8 Zt-2/Zt-3 AFR/Lambda readings supported.
4.4" Touch-Screen offers 480x272 resolution using TFT LCD technology.
24-bit full color display with contrast ratio of 350:1
Dimensions are 5” x 3” x 1”, weight is only 0.5 lbs, (127mm x 77mm x 26mm, 275 grams)
Full OBDII support for display of parameters such as Mass Air Flow, Spark Advance, Coolant Temperature, and many more! (OBDII is not required for use with the Zt-2.)
Data logging support onto removable memory card -- no laptop or PDA required.
Auto Adjusting backlight, night mode, and low power standby.
Calculate Horsepower, Torque, 0 to 60 Performance, MPG and set configurable trip counters.
Diagnose and clear check engine light error codes.
OBDII and Plug and Play Zeitronix Zt-2 cables included.
DashDAQ Zt-2 license included ($50 value)
Simple and secure windshield-mounted display.

NEW!!! Optional GPS support with NAVTEQ maps for US and Canada. Supports points of interest, turn by turn directions, and voice guidance!
Data Logging Log Zt-2 data and OBDII data on optional MMC/SD memory cards (up to 4GB in size).
Supports Full OBDII for 1996 and newer vehicles (Zt-2 parameters from any vehicle)
Log and View up to 24 parameters at once for hours at a time
Zt-2 - DashDAQ connector cable included
Connect two to log left and right cylinder banks in our Dual Zt-2 configuration
