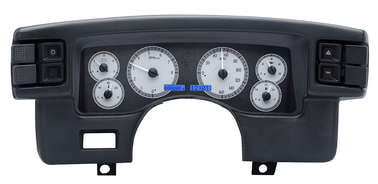

1990-1993 Mustang Dakota Digital VHX System - Silver Alloy

Now Available from Dakota Digital!

The new VHX Systems fit directly into the stock instrument bezel of a 1990- 93 Ford Mustang without modification, adding a wealth of features to this iconic vehicle.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

NOTE Metric packages are available by special order only, and are approximately 4-6 weeks for delivery.

Analog Gauges

Speedometer 0-160 MPH (optional metric version 0- 255 kmh)
Tachometer 0-8,000 RPM
Oil Pressure 0-80 psi
Water Temperature 100- 260ºF (optional metric version 40- 120ºC)
Fuel Level E, 1/4, 1/2, 3/4, F
Voltmeter 9- 17 VDC
Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Center

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0- 9,999.9)
Clock (12 hour)

Performance Meters

0- 60 MPH Timer (0- 100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Built-in Indicators

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors

Water Temperature 1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure 1/8" NPT solid state sensor with a 10 ft harness.
Bushings Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Instrument Bezel Not Included
