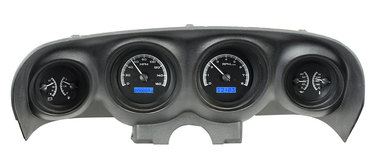

1969-1970 Mustang Dakota Digital VHX/MHX System - Black Alloy

The new Dakota Digital VHX/MHX Systems fit directly into the stock instrument bezel of a 1969-1970 Ford Mustang without modification. Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX/MHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. All required sensors are included for easy installation. The speedometer sensor plugs into your stock transmission sending unit hole and comes with 10 feet of wiring so you can run it a number of ways to get to you gauges. The VHX is Imperial, so gives you the original MPH readings. The MHX is Metric so you get Km/h readings in your old Mustang! Note: A dimming feature is available for $45.00. Please mention you want this in the message block when ordering.

Analog Gauges

Speedometer 0-160 MPH (optional metric version 0- 255 kmh)
Tachometer 0-8,000 RPM
Oil Pressure 0-80 psi
Water Temperature 100- 260ºF (optional metric version 40- 120ºC)
Fuel Level E, 1/4, 1/2, 3/4, F
Voltmeter 9- 17 VDC
Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Center

Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0- 9,999.9)
Clock (12 hour)

Performance Meters

0- 60 MPH Timer (0- 100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Built-in Indicators

Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors

Water Temperature 1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure 1/8" NPT solid state sensor with a 10 ft harness.
Bushings Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Instrument Bezel Not Included
