BAER BRAKES Rear Brake Kit 4 Lug 1993 Only

This system features the S4 4-piston caliper mounted to a 12", 1 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses are also included. The 12” SS4 fits most 16” or larger wheels.

Rotor Size/Type: 12" x 1.020", 1-piece

| Replacement Rotors: 6919116 (Left) / 6929116 (Right)

| Caliper/Piston Count/Mount Type: S4 / 4-piston / Lug

| Replacement pads: DR1-C

| Minimum Wheel Size: Some 15" or larger (Use template to verify fitment, link below)

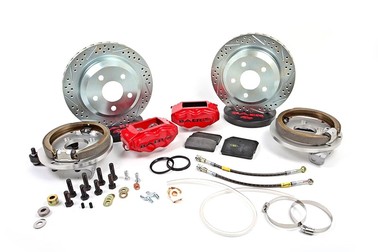

| System Includes: Calipers, Brake pads, Rotors, Brackets, Park brake assembly w/cables, Stainless braided brake hoses & system hardware. System incorporates Baer's unique Verislide design allowing the calipers to float with the factory c-clip axles

| Notes: Designed to be used on Ford 8.8 C-clip rear with 2.5" axle standoff. This system has a 4x4.25" bolt circle

Master Cylinder upgrade is recommended 1979-86 Cars - Use p/n 6800092 which includes a 15/16" bore master cylinder, 2 hard lines and fittings. This kit is a direct bolt on. 1987-93 Cars - Use p/n 6800096 which includes a 15/16" bore master cylinder, 3 hard lines and fittings. This kit is a direct bolt on designed to convert cars with a factory 3-port master cylinder, to a 2-port.

| Applications:

• 1993 Mustang (Fox) with OE 8.8" rear end and 4 lug axles (Does Not fit 1993 Cobra, see 94-04 rear systems)

PLEASE SPECIFY THE COLOR CALIPERS YOU WOULD LIKE
